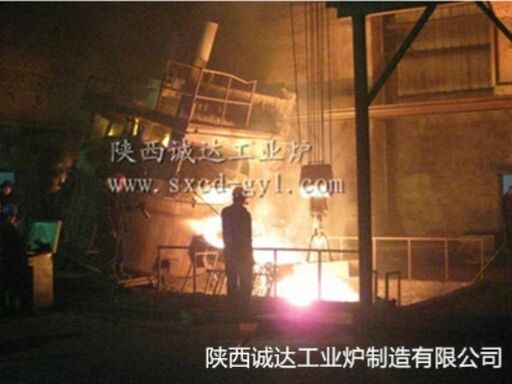

Ferrovadium Furnace Equipment Introduction

Core Advantages

1. Professional smelting design




   Optimized for high temperature (1600-1800℃) and strong corrosion during ferrovadium smelting. The furnace lining adopts composite structure of magnesia brick, chrome-magnesia brick and corundum slag ramming, featuring high temperature resistance, erosion resistance and long service life.
2. High efficiency & energy saving




   Available in standard capacity from 1.5t to 5t, matched with 1800kVA transformer. Equipped with conductive cross arm and precise electrode lifting control system, it achieves high thermal efficiency and low power consumption, with vanadium recovery rate over 95%.
3. Safe & stable operation




   Adopts full water-cooled furnace cover and sealed furnace body design, equipped with furnace tilting, furnace cover lifting & rotating and explosion-proof smoke exhaust system, ensuring safe operation and convenient maintenance.
4. Intelligent control




   Adopts PLC automatic control system to realize full-process automatic operation of batching, heating, smelting, slag tapping and iron tapping. Real-time monitoring of temperature, current and voltage ensures stable smelting quality.
5. Strong flexibility




   Customizable capacity from 1.5t to 10t, compatible with various raw materials including vanadium slag, V₂O₅ and V₂O₃, meeting diverse production capacity demands.

Structural Composition

1. Furnace Body




   High-strength steel plate welded shell with reinforced steel rings. Composite furnace lining structure effectively prevents furnace leakage and thermal shock damage.
2. Furnace Cover System




   Water-cooled sealed furnace cover with lifting and rotating mechanism, reducing heat loss and flue gas emission.
3. Electrode System




   High-purity graphite electrodes matched with servo lifting device, which can automatically adjust electrode height and current to stabilize electric arc and control temperature accurately.
4. Tilting Mechanism




   Electric/hydraulic tilting drive structure, realizing thorough separation of slag and molten iron with smooth discharging.
5. Electric Control System




   Professional metallurgical transformer and PLC intelligent control cabinet, integrated with data acquisition, power regulation, safety interlock and fault alarm functions.
6. Auxiliary Systems




   Complete supporting systems including material conveying, dust removal, cooling water circulation and slag treatment to form a one-stop production solution.

Main Technical Parameters

Application Fields

• Mass production of FeV40, FeV50, FeV60 ferrovadium alloys
• Vanadium element addition for high-strength steel and stainless steel
• Preparation of high-end vanadium-based materials for aerospace and new energy industries
• Comprehensive recovery and utilization of vanadium secondary resources
