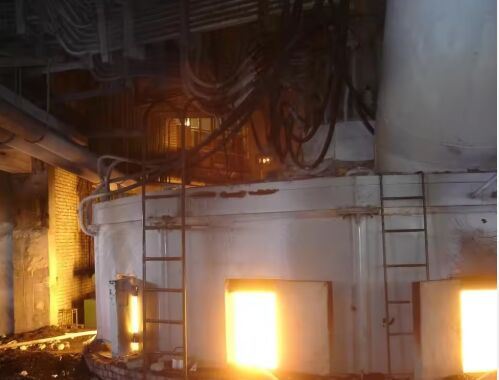

Smart Submerged Arc Furnace With Automatic Temperature Control

مكان المنشأ الصين
اسم العلامة التجارية Shaanxi Chengda
إصدار الشهادات ISO 9001
رقم الموديل التفاوض على أساس قدرة معالجة المعدات
الحد الأدنى لكمية 1 وحدة
الأسعار The price will be negotiated based on the technical requirements and supply scope of Party A
تفاصيل التغليف ناقش وفقًا للمتطلبات المحددة للطرف أ
وقت التسليم شهرين
شروط الدفع ل / c، / تي تي، ويسترن يونيون
القدرة على العرض استكمال سلسلة توريد الإنتاج، والتوريد في الوقت المحدد، وتلبية معايير الجودة
تفاصيل المنتج
إبراز

Smart submerged arc furnace for ferroalloy smelting,Automatic temperature control arc furnace,Submerged arc furnace with temperature regulation

,

Automatic temperature control arc furnace

,

Submerged arc furnace with temperature regulation

اترك رسالة
منتوج وصف

Key attributes


type
Induction Furnace
voltage
226V, 220V Electrical Equipment
usage
Melting Furnace
key selling points
Easy To Operate, Remote Control, Competitive Price, Long Service Life, Remote Monitoring
warranty
1 Year
core components
PLC, Bearing, Gearbox, Motor, Gear
machinery test report
*
video outgoing-inspection
*
place of origin
Shaanxi, China
weight (t)
1
brand name
HANI
Working Temperature(℃)
2200°C
Capacity (kg/h)
200 kg/h
Material
Alloy, Stainless Steel
Furnace type
Low hood submerged arc furnace
Rated power
4.2MVA
Transformer apparent power
3x11000KVA
Daily output
178t
Extreme circle diameter
3850mm
Application
For Ferroalloy melting
Electrode diameter:
1550mm
Furnace depth
3800mm
Secondary voltage
154-226-265v
Transformer platform height
12000mm

Packaging and delivery

Selling Units
Single item
Specification
Transformer apparent power
KVA
3×11000
Single phase
Furnace type

Low hood submerged arc furnace

Production varieties

High carbon ferrochrome

Daily output
t
178

Annual output
t
58740
330days
Iron furnace times
times
8
within24h
Average amount of iron
t/furnace
22

Maximum amount of iron
t/furnace
22

Electrode diameter
mm
1550
Self-baking electrode
Extreme circle diameter
mm
3850

Furnace diameter
mm
9500

Furnace shell diameter
mm
12000
Inner diameter
Secondary voltage
v
154-226-265
Inner diameter
Rated current
A
84310

Common secondary voltage
v
226

Common secondary current
A
84310

Electrode working stroke
mm
1400

Electrode maximum stroke
mm
1800

Electrode maximum stroke
mm
20500

Transformer platform height
mm
12000

Our Services
1. Customize according to your requirements and provide you with an effective quotation.
2. We have professional engineers to design the plan for you.
3. Our team will provide professional advice and help for your whole project.
4. Our factory is always ready to welcome field visits.
5. Ensure high quality after-sales service.

FAQ
Q1: Are you trading company or manufacturer? A: We are manufacturer. Q2: How long is your delivery time? A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment? A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.

lf you are interested in this equipment, please don't hesitate to contact us!
